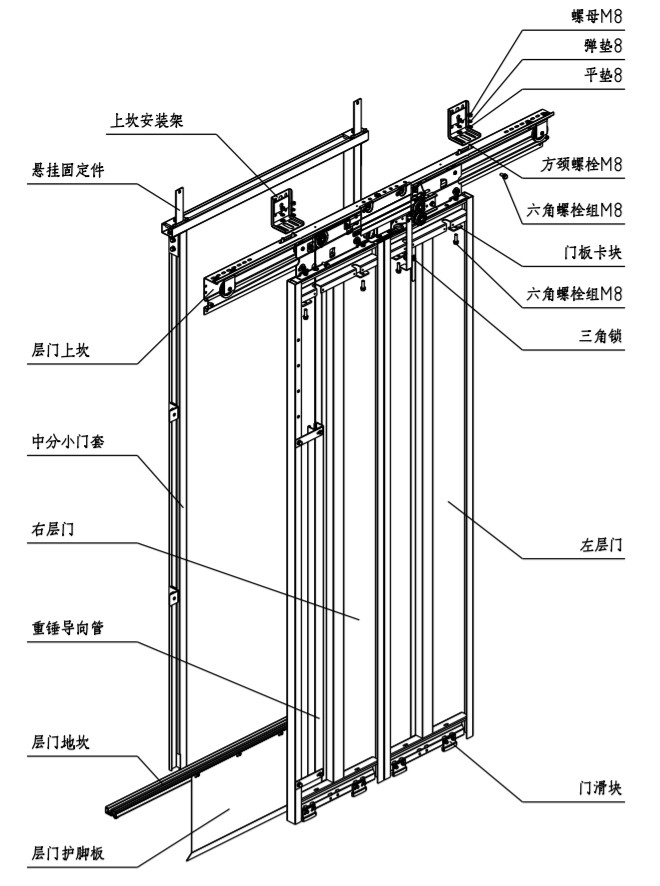

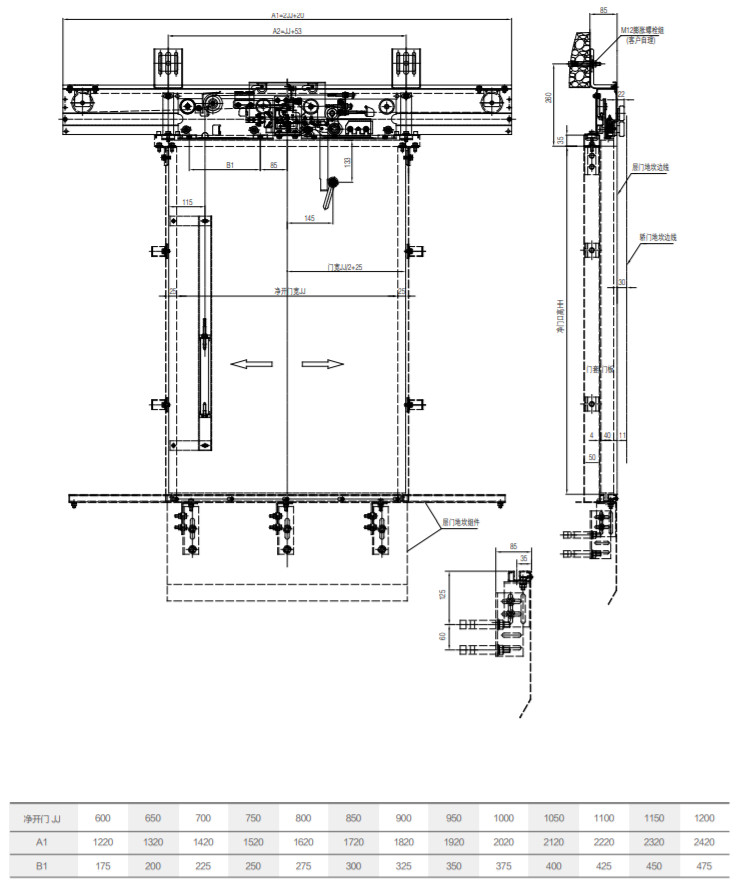

2-Cibiyar Ganyayyaki Buɗe Ƙofar Saukowa Na'urar THY-LD-B
1. Hanyar buɗewa ita ce buɗe ƙofar kofa kuma ku wuce gwajin tasirin pendulum 45Kg.
2. Ana tilasta ƙofar ta rufe ta da babban guduma, kuma an sanya maɗaukaki mai nauyi da bututun jagora a gefen ciki na ƙofar saukowa.
3. Kulle kofa ya ci jarrabawar Cibiyar Bincike ta Elevator ta kasa kuma ta sami takardar shedar CE da CU-TR.
4. Wutar lantarki mai dacewa na kulle ƙofar: ≤ AC230V, ≤ DC110V.

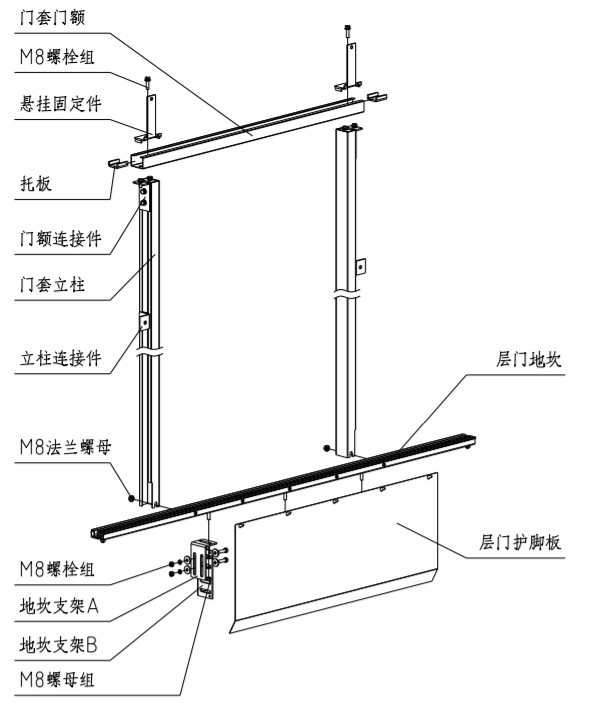

1. Shigar da sill da murfin kofa
1.1. Ƙayyade matsayi na shigarwa da fita na sill bisa ga girman hawan hawan; daidaita tsakiyar sill don zama daidai da tsakiyar mashiga da fita, kuma sanya alamar tsakiyar sill; daidaita matakin sill ya zama ƙasa da 1/1000; Surface don hana ruwa shiga cikin hoistway.
1.2. Haɗa ginshiƙin murfin ƙofar da ƙofar murfin ƙofar tare da haɗin haɗin gwiwa, kuma shigar da sassan gyara rataye; sanya ƙofar a kan sill, daidaita daidaitaccen ginshiƙin murfin ƙofar ya zama ƙasa da 1/1000; tsakiyar murfin ƙofar yana daidai da tsakiyar ƙofar kuma yana fita ma'aunin alamar cibiyar Sill; Girman jirgin saman goshin ƙasa na murfin ƙofar da jirgin sama na sill shine tsayin ƙofar gidan. Bayan an gama daidaitawa, kulle M8 flange goro. Bayan daidaita girman, gyara mai haɗin shafi zuwa bango.
1.3. Gyara mai tsaron yatsan yatsan ƙofar da ke sauka akan sill.

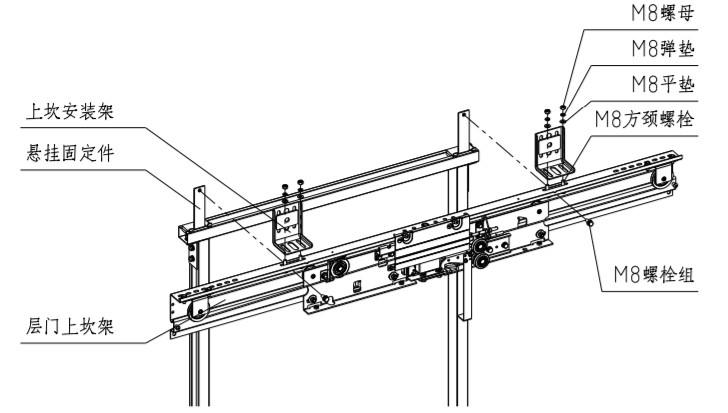

2. Shigar da na'urar ƙofar sauka
2.1. Daidaita firam ɗin sill na sama na ƙofar saukarwa tare da barb a ƙarshen ƙarshen gyare-gyaren dakatarwa, kuma kulle firam ɗin sill na sama da ɓangaren dakatarwar da aka gyara na ƙofar saukowa ta hanyar ƙungiyar M8 * 20.
2.2. Gyara firam ɗin hawan sill na sama akan bangon babban titin tare da faɗaɗa kusoshi ko kusoshi ta bango. Firam ɗin hawan sill na sama da ƙofar saukarwa na sama suna haɗe da kusoshi murabba'in M8.
2.3. Daidaita sill na sama na ƙofar saukarwa hagu da dama don sa tsakiyar ƙofar buɗe da tsakiyar ƙofar da fita daidai.
2.4. Daidaita tsaye na kasan na'urar ƙofar saukowa. Daidaita a tsaye na kasan na'urar kofa ta saukowa zuwa ± 0.5mm ta hanyar shimfida layi na tsaye ko ɗaukar sigar ƙofar mota azaman tunani.
2.5 Bayan nazarin manyan sigogi na shigarwa na firam ɗin sill a kan ƙofofin bene masu zuwa, ƙara duk kusoshi na shigarwa:

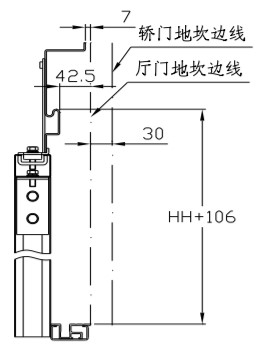

Height na saman sill firam na ƙofar saukowa: nisa tsakanin saman saman saman sill firam ɗin jagorar jagorar ƙofar saukarwa da sill ɗin ƙofar saukarwa shine HH + 106mm;
Cibiyar tsakiyar sill na sama na ƙofar saukowa: ɓata tsakanin tsakiyar tsakiyar sill frame na ƙofar saukowa da tsakiyar ƙofar da fita shine ± 1mm;
Nisa tsakanin layin jagora na saman sill na ƙofar saukarwa da sill ɗin ƙofar mota: nisa tsakanin layin jagora na sama na ƙofar saukarwa da sill na ƙofar saukarwa shine 42.5mm, kuma nisa daga sill ɗin ƙofar motar shine 72.5mm.
Height na saman sill firam na ƙofar saukowa: nisa tsakanin saman saman saman sill firam ɗin jagorar jagorar ƙofar saukarwa da sill ɗin ƙofar saukarwa shine HH + 106mm;
Cibiyar tsakiyar sill na sama na ƙofar saukowa: ɓata tsakanin tsakiyar tsakiyar sill frame na ƙofar saukowa da tsakiyar ƙofar da fita shine ± 1mm;
Nisa tsakanin layin jagora na saman sill na ƙofar saukarwa da sill ɗin ƙofar mota: nisa tsakanin layin jagora na sama na ƙofar saukarwa da sill na ƙofar saukarwa shine 42.5mm, kuma nisa daga sill ɗin ƙofar motar shine 72.5mm.
