Ana Amfani da Takalman Jagorar Zamewa Don Talakawa Masu hawan Fasinja THY-GS-029

Ana Amfani da Takalman Jagoran Zamiya Don Talakawa Masu Hawan Fasinja THY-GS-029 Fitaccen Hoton

Takaitaccen Bayani:

Cikakken Bayani

Tags samfurin

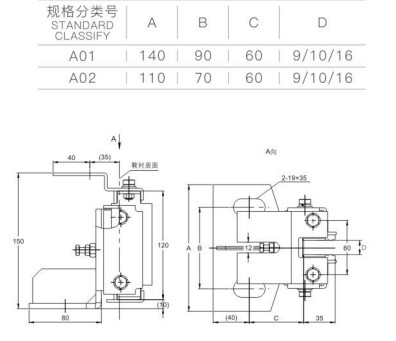

Sigar Samfura

Matsakaicin Gudu	≤1.75m/s
Ƙarfi Mai Kyau	1050N
Yawing Force	650N
Match The Guide Rail	9,10,15.88,16
Ana amfani da capsules na gefe

Bayanin samfur

THY-GS-029 Mitsubishi takalma jagorar zamiya ana shigar da su a ƙarƙashin wurin zama na kayan tsaro akan katako na sama na mota da kasan motar. Gabaɗaya, akwai 4 kowannensu, wanda wani sashi ne don tabbatar da cewa motar tana tafiya sama da ƙasa tare da titin jagora. An fi amfani da shi don lif waɗanda aka ƙididdige su a ƙasa da 1.75m/s. Wannan takalmin jagora ya ƙunshi suturar takalmi, wurin zama na takalmi, mai riƙe da kofin mai, bazarar matsewa da sassan roba. Wurin zama na takalma yana da isasshen ƙarfi da ƙarfi, kuma yana da damping mai kyau. Wurin zama na takalma yawanci ana yin shi da baƙin ƙarfe mai launin toka; saboda tsarin walda na farantin yana da sauƙi don kera, tsarin waldawar farantin kuma ana amfani da shi akai-akai. Rufin taya yana da nisa daban-daban na 9-16mm, wanda ya dace da masu amfani don zaɓar bisa ga faɗin layin jagora. An yi shi da polyurethane mai jure lalacewa. Don inganta aikin zamewa da kuma rage rashin daidaituwa tsakanin suturar takalma da dogo na jagora, ana buƙatar man mai mai lubricating, don haka akwai shinge don sanya kofin mai a kan takalmin jagora. Man mai mai mai a cikin akwatin mai yana da kyau a rufe a kan filin aiki na dogo na jagora ta hanyar ji don cimma manufar lubrication ta atomatik.

Jagorar hanyar daidaita takalma

Kafin shigar da takalmin jagora, da farko a dunƙule goro mai daidaitawa ta yadda tazarar X tsakanin madaidaicin da kushin roba ya zama 1mm. Bayan shigar da takalmin jagora, sassauta goro mai daidaitawa don tazarar Y tsakanin kwaya mai daidaitawa da farfajiyar madaidaicin shine kusan 2 ~ 4mm. A wannan lokacin, rata X kuma yakamata ya kasance tsakanin 1 ~ 2.5mm. Sa'an nan kuma ƙara ɗaure goro. Bayan daidaitawa bisa ga matakan da suka gabata, za ku iya lura da tsattsauran takalman jagora ta hanyar girgiza motar da kyau, wato, kiyaye takalman jagora da raƙuman jagora a cikin hulɗar asali, amma ba maƙarƙashiya ba. A lokaci guda, yanayin shigarwa na takalman jagorar za a iya daidaita shi daidai bisa ga tsarin daidaitawar jirgin ruwa na jagoran takalma a wannan lokacin.
