High Quality Elevator Karfe Waya igiyoyi

Takaitaccen Bayani:

Mafi ƙananan fasinja lif da ake amfani da su don igiyoyin lif. A cikin gundumomin zama na kasuwanci, ƙayyadaddun igiya na lif sune gabaɗaya 8*19S+FC-8mm, 8*19S+FC-10mm.

Aika mana imel

Cikakken Bayani

Tags samfurin

Ma'aunin Samfura

1.Wannan ƙayyadaddun ya dace da igiya mai iyaka na sauri, ƙananan gudu, ƙananan hawan kaya

2.We kuma iya siffanta bisa ga bukatun.

Diamita Na Igiya	6*19S+PP	Ƙaunar Ƙarƙashin Ƙarya
	Kimanin nauyi	Dual Tensile, Mpa		Single Tensile, Mpa
	Kimanin nauyi	1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
6	12.9	17.8	19.5	18.7	21
8	23	31.7	34.6	33.2	37.4

1.Natural fiber core (NFC): Dace da igiya igiya na gogayya inji tare da rated gudun ≤ 2.0m / s

2.Tsawon gini≤80M

Diamita Na Igiya	8*19S+NFC	Ƙaunar Ƙarƙashin Ƙarya
	Kimanin nauyi	Dual Tensile, Mpa		Single Tensile, Mpa
	Kimanin nauyi	1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
8	21.8	28.1	30.8	29.4	33.2
9	27.5	35.6	38.9	37.3	42
10	34	44	48.1	46	51.9
11	41.1	53.2	58.1	55.7	62.8
12	49	63.3	69.2	66.2	74.7
13	57.5	74.3	81.2	77.7	87.6
14	66.6	86.1	94.2	90.2	102
15	76.5	98.9	108	104	117
16	87	113	123	118	133
18	110	142	156	149	168
19	123	159	173	166	187
20	136	176	192	184	207
22	165	213	233	223	251

1.Don IWRC, gudun> 4.0 m / s, Ginin tsawo> 100m

2.Don IWRF,2.0

Diamita Na Igiya	8*19S		Ƙaunar Ƙarƙashin Ƙarya
	Kimanin nauyi		Single Tensile, Mpa
	Kimanin nauyi		1570		1620		1770
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
mm	Kg/100m		kN		kN		/	kN
8	26	25.9	35.8	35.2	36.9	35.2	40.3	39.6
9	33	32.8	45.3	44.5	46.7	45.9	51	50.2
10	40.7	40.5	55.9	55	57.7	56.7	63	62
11	49.2	49	67.6	66.5	69.8	68.6	76.2	75
12	58.6	58.3	80.5	79.1	83	81.6	90.7	89.2
13	68.8	68.4	94.5	92.9	97.5	98.5	106	105
14	79.8	79.4	110	108	113	111	124	121
15	91.6	91.1	126	124	130	128	142	139
16	104	104	143	141	148	145	161	159
18	132	131	181	178	187	184	204	201
19	147	146	202	198	208	205	227	224
20	163	162	224	220	231	227	252	248
22	197	196	271	266	279	274	305	300

Bayanin Samfura

Mafi ƙananan fasinja lif da ake amfani da su don igiyoyin lif. A cikin gundumomin zama na kasuwanci, ƙayyadaddun igiya na lif sune gabaɗaya 8*19S+FC-8mm, 8*19S+FC-10mm. Kayayyakin kantunan suna amfani da ƙayyadaddun igiyoyin lif na 12mm, 13mm, da ƙayyadaddun igiya na lif na ƙarfe na 12mm, 13mm, da 16mm a diamita.

Domin yin odar igiyar waya ta karfe, ana buƙatar ku ba mu cikakken bayani kamar yadda aka ƙayyade a ƙasa:

1. Manufar: Wace igiya za a yi amfani da ita;

2. Girma: Diamita na igiya a cikin millimeter ko inci;

3. Gina: Yawan igiyoyi, adadin wayoyi a kowane yanki da nau'in ginin ginin;

4. Nau'in Core: Fiber core (FC), igiyar igiya mai zaman kanta (IWRC) ko madaidaiciyar igiyar waya mai zaman kanta (IWSC);

5. Lay:Dama na yau da kullun, na yau da kullun na hagu, hagu na yau da kullun;

6. Material: Bright (ungalvanized), galvanized ko bakin karfe;

7. Girman Waya: Ƙarfin ƙarfi na wayoyi;

8. Lubrication: Ko ana so ko a'a kuma ana buƙatar man shafawa;

9. Tsawon: tsawon igiyar waya;

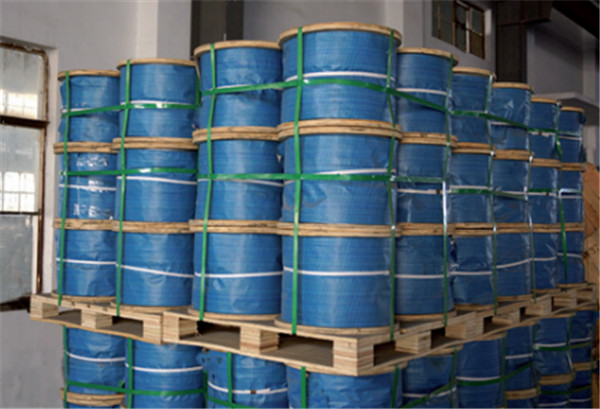

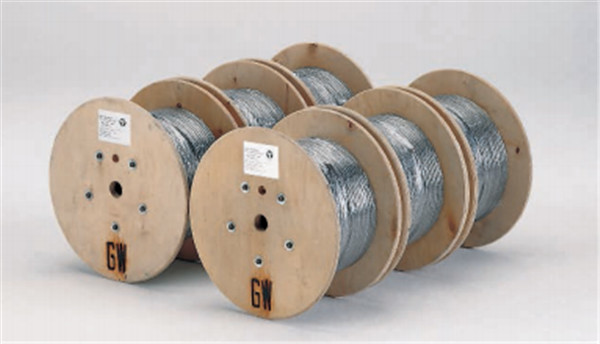

10. Packing: A cikin coils nannade da takarda mai da zanen hessian ko a kan reels na katako;

11. Yawan: Ta adadin coils ko reels ta tsawon ko nauyi;

12. Jawabi: Alamomin jigilar kaya da duk wasu buƙatu na musamman.

A cikin aiki na dogon lokaci, man mai a kan igiyar waya zai ragu a hankali. Don haka ya zama dole a rika shafawa igiyar waya mai a kai a kai, wanda zai iya tsawaita rayuwar igiyar waya, da rage lalacewa da kuma hana tsatsa ta hanyar relubricating. Idan aka kwatanta da igiyar waya mai cikakken mai, za a iya rage rayuwar sabis ɗin busasshen igiyar waya da kashi 80%! Relubrication na igiyar waya yana taka muhimmiyar rawa. Yawancin lokaci muna zabar man mai mai T86, wanda ruwa ne mai sirari wanda zai iya shiga cikin igiyar waya cikin sauki. Yana buƙatar buroshi kawai ko ganga mai ɗaukuwa mai ɗaukuwa don fesa shi. Ya kamata wurin da za a yi amfani da shi ya kasance inda igiyar waya ta taɓa sheave ko dabaran jagora, ta yadda mai mai na waya zai iya shiga cikin igiyar waya cikin sauƙi.
